AppDev Practical Assignment 1: build a distance sensor

Preview

Arduino building and programming assignment for day 1. Review the Practical Intro 1 first. It also contains a quick walk-through video of this assignment.

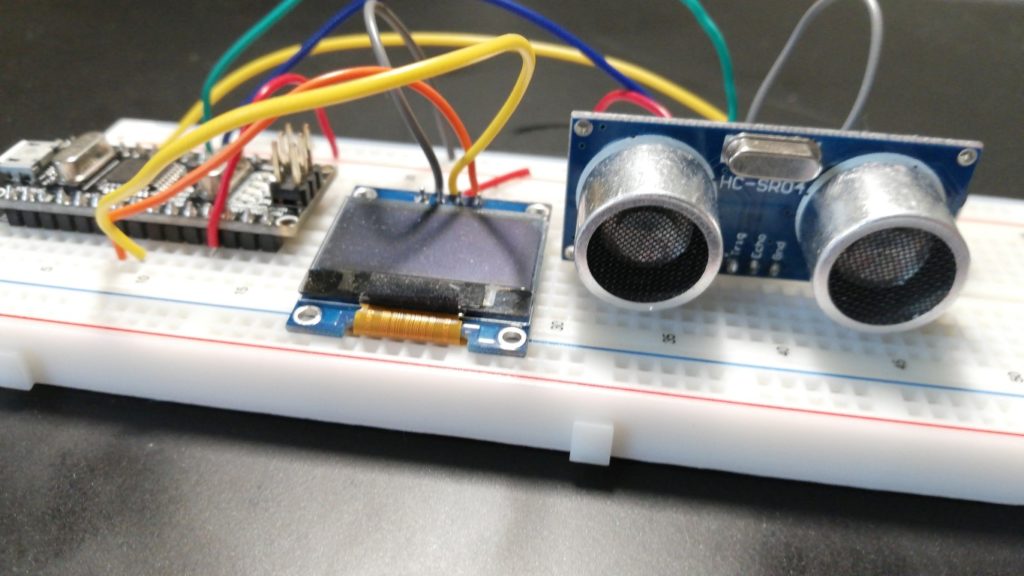

We will build a distance meter in this practical. It uses an ultrasonic distance sensor to sense the distance to an object nearby.

It consist of the following steps:

  1. Connect and test the OLED display
  2. Connect and test the Ultrasonic sensor
  3. Add an alarm dependent on the distance
  4. Add comments to the code

1. Connect and test the OLED display

The 0.96 inch OLED Display (128*64 pixels) is an i2c module, which makes it easy to connect as it has only 4 wires. It is assumed you have installed the Arduino IDE and have some basic understanding of using electronics and wiring a breadboard as explained in the practical intro.

Please take great care: pins on your display might be in a different order! the one below has GND-VCC-SCL-SDA, but yours might be different!

To use this display, you can connect it to power (GND and VCC, it can be either 3.3 or 5V) and connect the SDA and SCL pins to the SDA (A4) and SCL (A5) pins of the Arduino. These are hardware i2c pins:

Display:    Arduino:
GND         GND
VCC         5V
SCL         SCL (A5)
SDA         SDA (A4)

(click images for larger version)

You can mount this display directly onto a breadboard and connect the wires:

Download example sketch

To test this display, you can use this example sketch: oled_display_distance.ino. Open it in the Arduino IDE. The sketch uses the U8g2 library, which you must install before you use this sketch: In the Arduino IDE, select Tools > Manage Libraries, then search for “U8g2” and install the library (the one “by oliver”).

Next, connect the Arduino to your computer with a USB cable.

Before you upload the example sketch to the Arduino, configure the Arduino IDE to use the correct setting for the type of Arduino you use: under the Tools menu, check the board settings:

The Port can be any active Port (eg. COM1-12, or on Mac OS something like “/dev/tty.usbmodem…” or “/dev/tty.usbserial-…” ). There should be one option you can select here.

Make sure “ATmega328P (Old Bootloader)” is selected at “Processor”. (However, if you use the BLE Nano, you should use the regular “ATmega328P”).

Upload the example sketch

Now upload the sketch (press the Upload button Upload button ) to transfer the sketch to the Arduino and run it. The display should show some text messages and the value of the variable distance.

To display values of variables with this display in a simple manner, you might need code like this:

display.drawString(0,0,"Distance:");
display.setCursor(0, 1); // go to next line
display.print(distance);

This shows the message “Display:” on line 0, then displays the value of variable display on the next line. The example sketch uses a slightly more advanced way to display the value in a larger font size. Can you find that in the function loop()?

More info about displays

2. Connect and test the Ultrasonic sensor

This part of this tutorial introduces the HC-SR04 Ultrasonic sensor.

This image has an empty alt attribute; its file name is hc-sr04.png

To use this sensor, you can connect it to power (GND and VCC, this must be 5V) and connect the Trig and Echo pins to pin 4 and 5 of the Arduino:

This image has an empty alt attribute; its file name is Arduino_Nano_Pinout_Trig_Echo.png

(click the image to enlarge it)

You can mount the sensor directly onto a breadboard:

This image has an empty alt attribute; its file name is HC-SR04.jpg

Download example sketch

To test this sensor, you can use this example sketch: ultrasonic_sensor_with_display.ino. Open the sketch in the Arduino IDE. The sketch uses the Newping library, which you must install before you use this sketch. In the Arduino IDE, select Tools > Manage Libraries, then search for “Newping” and install the library.

Check the sketch

Before you upload the example sketch to the Arduino, verify the lines with #define TRIGGER_PIN and #define ECHO_PIN are set with the correct pins (4 and 5):

#define TRIGGER_PIN  4  // Arduino pin tied to trigger pin on the ultrasonic sensor.
#define ECHO_PIN     5  // Arduino pin tied to echo pin on the ultrasonic sensor.

Next, hook up the Arduino to your computer with the USB cable. Configure the Arduino IDE to use the correct setting for the type of Arduino you use: under the Tools menu, check the board settings:

This image has an empty alt attribute; its file name is arduino_board_settings.png

The Port can be any active Port (eg. COM1-12). After you have connected the USB cable and the Arduino has power, there should be one option you can select here. If you use the regular Arduino Nano, make sure you have selected the ‘Old Bootloader’ version at “Processor”.

Upload the sketch

Run the sketch (press the Upload button Upload button ). The display should show the distance as read by the sensor. If you do not use a display, you can see the distance in the serial monitor, which you can start via the Serial monitor icon in the top right corner.

Now find the line of code which looks like:

unsigned int distance = sonar.convert_cm(sonar.ping_median(5));

This is the line which reads the distance value from the sensor and assigns it to the variable distance. It uses the method ping_median(5), which will do 5 readings in a short time and takes the median of the five readings and returns that value. This will improve the accuracy of the readings.

More information about distance sensors

3. Add an alarm dependent on the distance

We are going to use a buzzer, which is a small device that can generate tones. There are different types, as explained here. But function wise they all work the same.

Connect the + pin of the buzzer to pin 9 of the Arduino (use pinout diagram) and connect the other pin to the (blue) GND track of the breadboard. An active buzzer must be connected to a PWM pin on the Arduino. Pin 9 is a PWM pin. More on PWM.

Download the sketch sound_active_buzzer_example.ino, connect the usb cable and upload the sketch. It should play a tune. You can also try this example sound_tune_happy_birthday.ino if the other one does not wok.

If you are already an experienced programmer, you should be able to combine the previous example with this one and make an alarm dependent on how close an object is. But combining two sketches might be a bit much for a start, so we have done this for you. The only thing we left out is the part which determines when the alarm has to sound. (This will be an if statement with a call to a function).

The combined example can be downloaded here: ultrasonic_sensor_warning.ino. Browse through the code, and check for parts you recognize from the previous examples. Try the example (upload it). As you may notice, it plays a short tone at the start. Can you find the line of code which does this? It is the last line in the setup() function. This is the line:

playTone(C, 16 * tempo ); // play a C for 16 beats

If this way of generating sound with the playTone() function does not work in your situation, try it with the basic tone() function build into the Arduino core (more info):

tone(speakerOut, 2000, 500);

To make an alarm, two things have to be done:

  1. Determine if an alarm has to be sound (with a condition)
  2. Make the alarm sound

Determine if an alarm has to be sound (with a condition)

In the loop(), near the end, find this line of comment:

// something nearby?

After that line, add an if-statement, with the next line of comment inside it:

if (condition) {
     // sound alarm
}

If something is close, the variable distance is smaller than a certain value. So an example of the condition is distance < 100. Add this to the code (replace the ‘condition’ between the brackets of the if-statement).

Make the alarm sound

Inside the if-statement, add the line of code which plays a tone (copy it from the last line of the setup() method). Make it play another tone, so not a C. You can find a list of the tones that can be played at the top of the sketch. If you are using the basic tone() function, adjust the frequency and the duration to generate a different tone (use this info).

Adjust the comment at the end of that line so it matches the code.

Now test the sketch (upload it). Does it work? Adjust the distance checked for in the condition. It should NOT be a meter (100cm).

A small fix

You might notice that sometimes it gives a false warning, when a 0 value is measured. A 0 value might be the result of an error, or because the reflected signal is not returned properly because there is nothing in sight (do you know how an ultrasonic sensor works? Check out the slide in the presentation about this).

The condition must be adjusted so it does not sound an alarm if the distance is 0. We can use an AND condition for this: distance > 0 AND distance < x. (x is the value you use in your condition). In both C and Java, the boolean AND operator is a ‘&&‘ symbol. So the condition will be: distance > 0 && distance < x. Modify your code accordingly. Do not forget to replace the x with your value for the distance.

4. Add comments to the code

Add more comments to the part of the code that you added/modified. The comments should explain, in your own words, what this code does. Use multi line comments or single line comments. Some examples:

/*
Example of a multi line comment.
This is the second line of the comment.
*/

// Example of a line of code with comment at the end of the line:
Serial.println("Start of distance measurement"); // display text on serial output

At the top of the sketch, add general comments. The first line of comments should contain your name and student number. Add at least one more line which explains the general meaning of the sketch as a whole (what does it do?).

Having added the required comments is mandatory. It will be checked when you hand-in the assignment.

Summary

With this first practical you have familiarized yourself with building an electronic circuit using a breadboard and you have used the Arduino IDE to program the Arduino with a sketch.
In addition, you have learned the following.

  • Adding components like a display and a sensor to a breadboard and wiring them
  • Using an example sketch to test the components
  • Use and setup libraries
  • Add code to an existing sketch
  • Adding comments to code

Need help? Use the chat below.

Finalize: take video

If your creation is working fine, you must make a video to demonstrate that is works as intended. In the video, you must be visible also (so we can be sure it is you giving the demo). In the video, you must also show the answers to the video-questions in the quiz below (click the “View the lesson quiz” button at the bottom of this page).

Hand-in the assignment

Hand-in the assignment on Canvas as a zip-file. Do not forget to include the complete Arduino project folder into the zip-file. You only have to hand-in the last sketch (from step 3). Also add the demonstration video you recorded. This manual shows you how to do this.
